Variacor

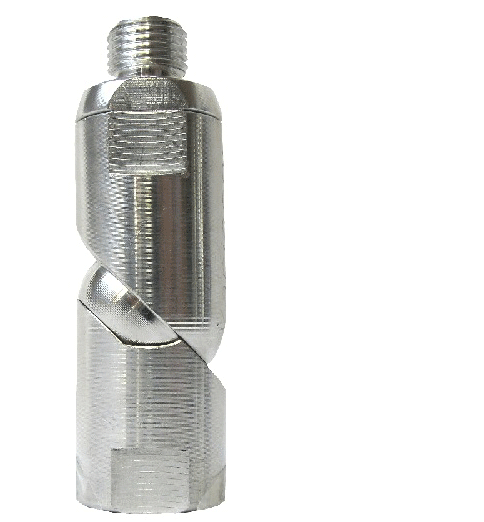

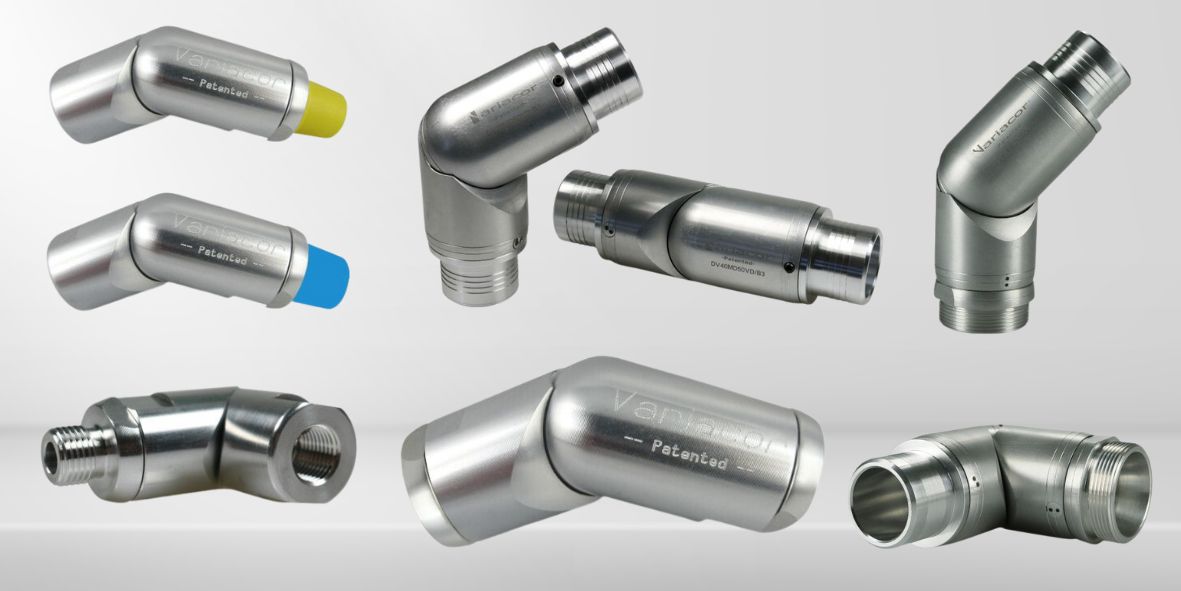

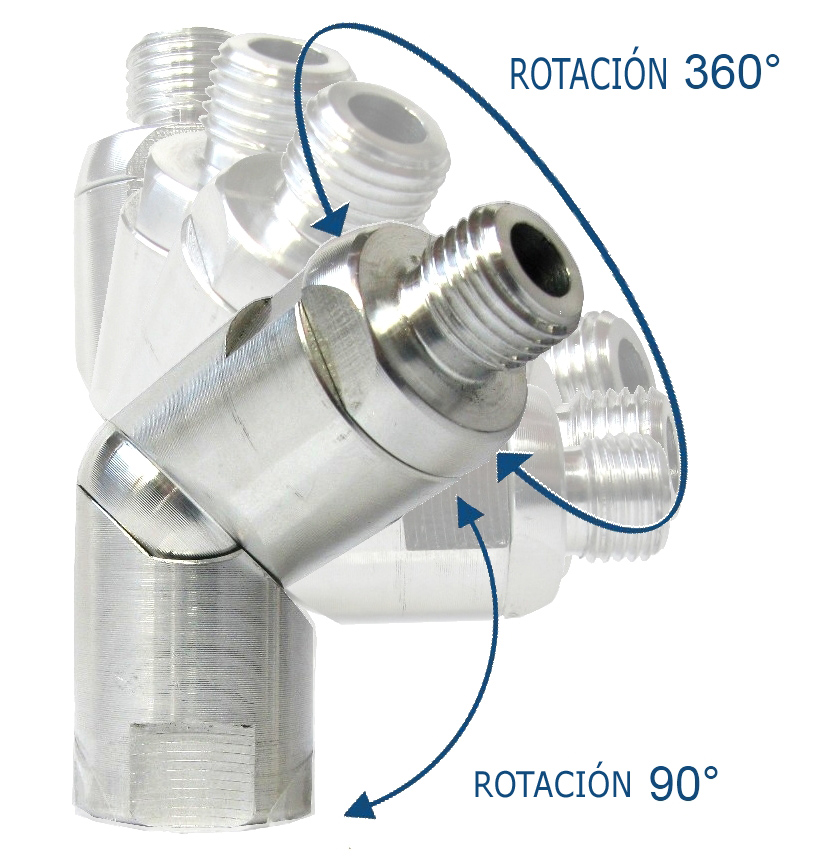

The internationally patented Variacor® system, allows thanks to its two swiveling joints, to turn rigid and semi-rigid pipes to flexible and swiveling, whatever their nature or applications.
- High working confort: It relieves wrist pressure, minimizing the efforts due to pipe stiffness.
- Maximum freedom: Greater maneuverability. Much more simple.
- Cost saving: Prevents the hose from twisting and kinking, reducing its wear out and increasing the lifetime. Longer lifetime
- Efficient: Decreases pressure drop, variacor connects directly with the tool, maintaining the hose and the tool perfectly positioned.
.jpg)
Available connections:
- “BSP”
- “NPT”
- “METRIC”
| REF. Connections | Thread | Flow l/min | weight | Ø int. |
|---|---|---|---|---|
| 1/4 " × 1/4 " | Interna /externa | 720 l/min | 72 grs. | 7 mm |
| 3/8 " × 3/8 " | Interna /externa | 1800 l/min | 126 grs. | 11 mm |
| 1/2 " × 1/2 " | Interna /externa | 1800 l/min | 132 grs. | 11 mm |
| DESCRIPTION | A | B | C | D |
|---|---|---|---|---|
| 1/4" x 1/4" | 24,0 | 67 | G 1/4" | G 1/4" |
| 3/8 " × 3/8 " | 29,5 | 82 | G 3/8" | G 3/8" |
| 1/2 " × 1/2 " | 29,5 | 82 | G 1/2" | G 1/2" |
Other application examples:

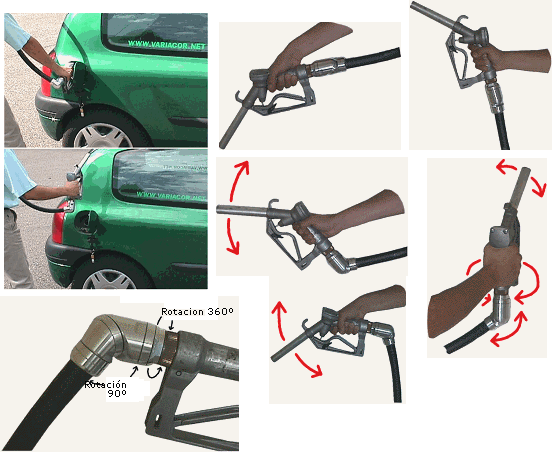

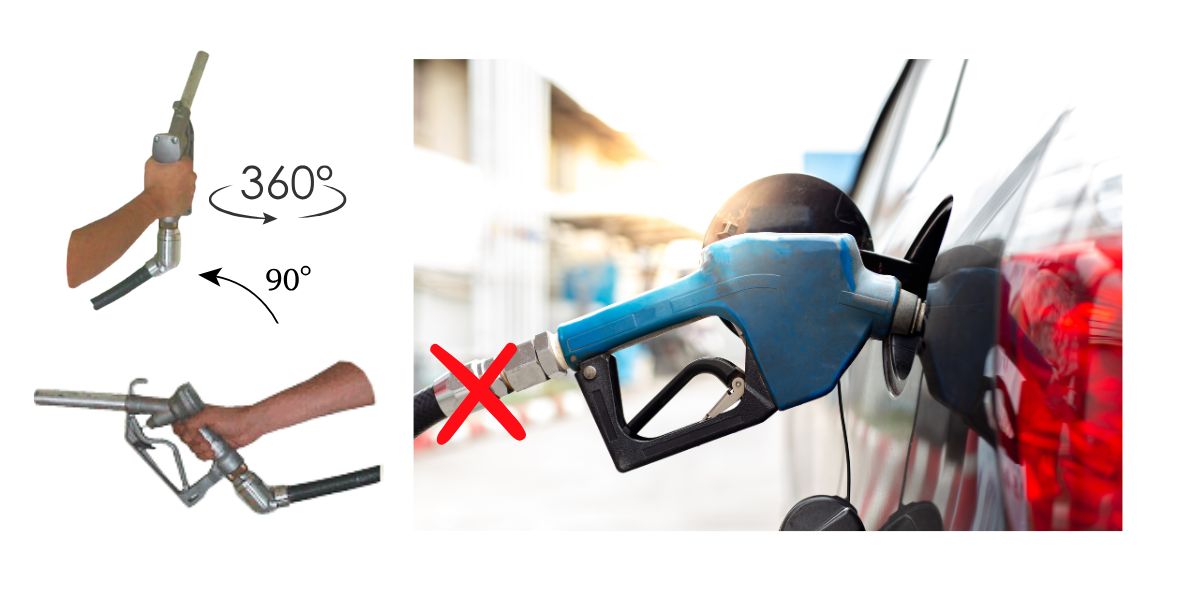

Petrol stations: For petrol and hydrocarbon hoses
(1).jpg)

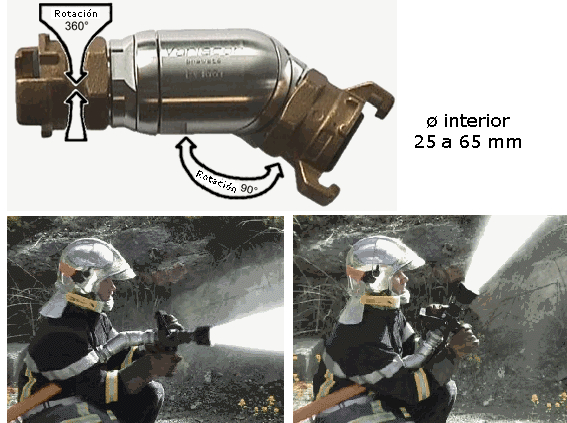

Firemen hoses:
